Integrated Dimensional Variation Management in the Digital Factory

Authors

J E Muelaner, P G Maropoulos
Department of Mechanical Engineering, The University of Bath, Bath, UK

Published in

Proceedings of DET2011 7th International Conference on Digital Enterprise Technology, Athens, Greece, 2011

Volume and page number information

39-46

Abstract

This paper describes how dimensional variation management could be integrated throughout design,
manufacture and verification, to improve quality while reducing cycle times and manufacturing cost
in the Digital Factory environment. Initially variation analysis is used to optimize tolerances during
product and tooling design and also results in the creation of a simplified representation of product
key characteristics. This simplified representation can then be used to carry out measurability
analysis and process simulation. The link established between the variation analysis model and
measurement processes can subsequently be used throughout the production process to
automatically update the variation analysis model in real time with measurement data. This ‘live’
simulation of variation during manufacture will allow early detection of quality issues and facilitate
autonomous measurement assisted processes such as predictive shimming.

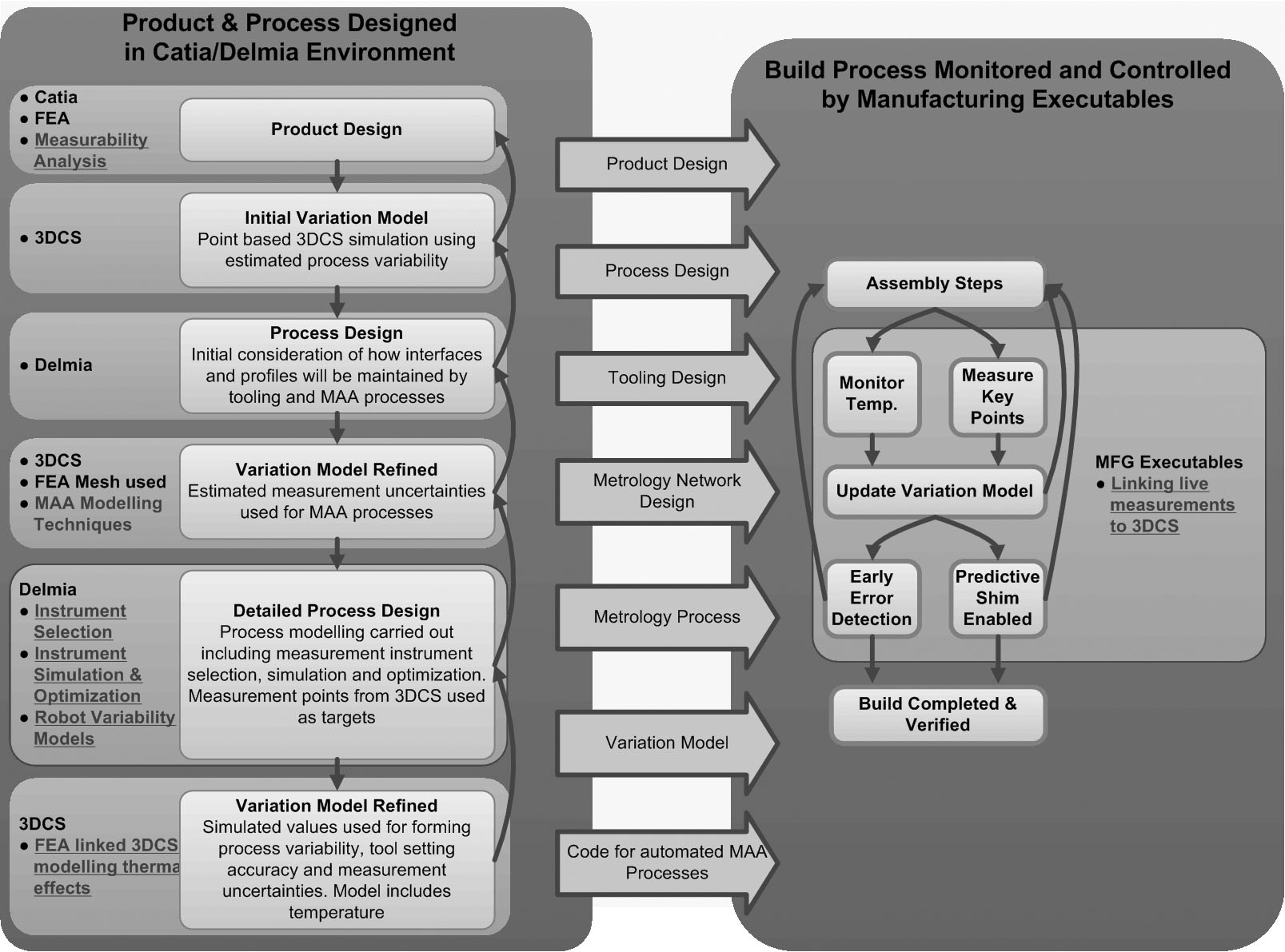

A study is described showing how these principles can be demonstrated using commercially
available software combined with a number of prototype applications operating as discrete modules.
The commercially available modules include Catia/Delmia for product and process design, 3DCS
for variation analysis and Spatial Analyzer for measurement simulation. Prototype modules are used
to carry out measurability analysis and instrument selection. Realizing the full potential of
Metrology in the Digital Factory will require that these modules are integrated and software
architecture to facilitate this is described. Crucially this integration must facilitate the use of realtime
metrology data describing the emerging assembly to update the digital model.

Download



References

  1. Cai, B., Guo, Y., Jamshidi, J. and Maropoulos, P. G.,
    “Measurability Analysis Of Large Volume Metrology
    Process Model For Early Design”, 5th International
    Conference on Digital Enterprise Technology, Nantes,
    France, 2008
  2. Calkins, J. M. (2002). Quantifying Coordinate
    Uncertainty Fields in Coupled Spatial Measurement
    Systems Mechanical Engineering. Blacksburg,
    Virginia Polytechnic Institute and State University.
    PhD: 226.
  3. Dwyer, J. “Simulation – the digital factory.”
    Manufacturing Computer Solutions 5(3):1999 48-50
  4. Fabricius, F. “Seven step procedure for design for
    manufacture.” World Class Design to Manufacture
    1(2):1994 23-30
  5. Kayani, A. and Gray, I. (2009). Shim for Arrangement
    Against a Structural Component and a Method of
    Making a Shim, Airbus UK Ltd.
    46
  6. Kayani, A. and Jamshidi, J., “Measurement Assisted
    Assembly For Large Volume Aircraft Wing
    Structures”, 4th International Conference on Digital
    Enterprise Technology, Bath, United Kingdom, 2007
  7. Kuhn, W. “Digital factory – Simulation enhancing the
    product and production engineering process”,
    Monterey, CA, United states, 2006,
  8. Maropoulos, P. G., Bramall, D. G. and McKay, K. R.
    “Assessing the manufacturability of early product
    designs using aggregate process models.” Proceedings
    of the Institution of Mechanical Engineers, Part B:
    Journal of Engineering Manufacture 217(9):2003
    1203-1214
  9. Maropoulos, P. G., Yao, Z., Bradley, H. D. and Paramor,
    K. Y. G. “Integrated design and planning environment
    for welding Part 1: product modelling.” Journal of
    Materials Processing Technology 107(1-3):2000 3-8
  10. Muelaner, J. E., Cai, B. and Maropoulos, P. G., “Large
    Volume Metrology Instrument Selection And
    Measurability Analysis”, 6th International Conference
    on Digital Enterprise Technology, Hong Kong, 2009
  11. Muelaner, J. E., Cai, B. and Maropoulos, P. G. “Large
    Volume Metrology Instrument Selection and
    Measurability Analysis.” IMechE, Part B: J.
    Engineering Manufacture 224:2010 853-868
  12. Muelaner, J. E. and Maropoulos, P. G., “Design for
    Measurement Assisted Determinate Assembly
    (MADA) of Large Composite Structures”, CMSC,
    Reno, Nevada, 2010
  13. New River Kinematics (2007). SpatialAnalyzer.
  14. Stone, P. R. “Reconfigurable Fixturing”. Aerospace Manufacturing and
    Automated Fastening Conference and Exhibition, St. Louis, MS, USA, 2004
  15. Womack, J. P., Jones, D. T. and Roos, D. “The Machine
    that Changed the World”Rawson Associates New
    York1990
